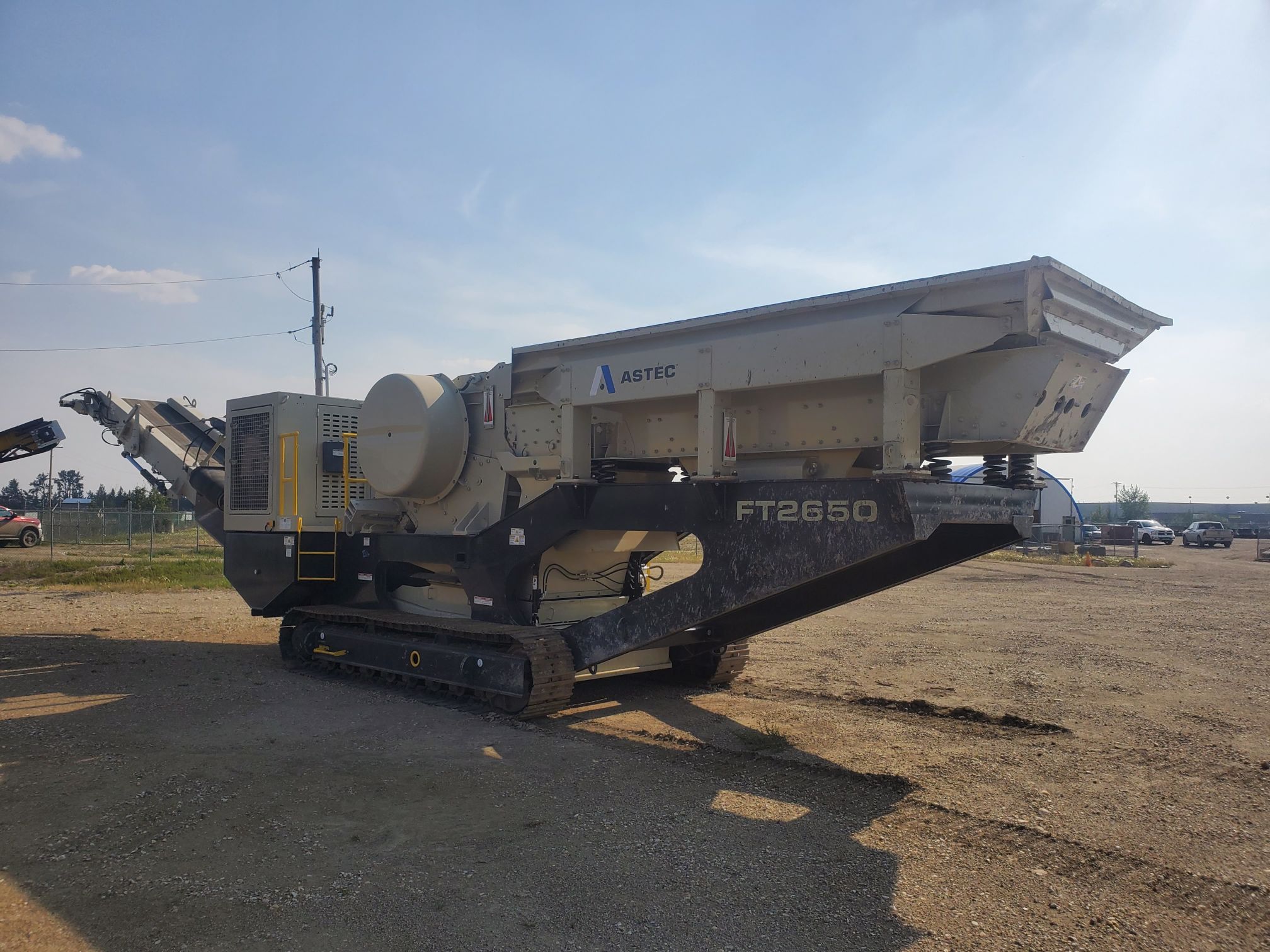

2022 Astec FT2650 Jaw Crusher

PERFORMANCE HIGHLIGHTS

Vibrating Grizzly Feeder

• 50” (1270mm) x 18’ (5.5m) vibrating pan feeder
• 6.5 cubic yard hopper
• 5’ step deck grizzly bars 2.5” nominal spacing
• Three position flop gate

Jaw Crusher – Vanguard

• Jaw opening – 26” (660mm) Jaw width – 50” (1270mm)
• 260 RPM maximum with 1.25” stroke
• 50” flywheels with AISI 4150 11.25” forged steel shaft
• Three (3) piece AR steel side liners
• Manganese steel jaw dies, cast steel pitman
• Shim-less hydraulic wedge adjust, min CSS 2.5”

Under Crusher Conveyor

• 48” (1200mm) fixed height with full spill boards
• Impact bed, 360PIW, 4ply, endless belting
• Easily removed for maintenance

Chassis

• Sculpted frame design
• 19.7” (500mm) tracks with dual drive
• Track length 12’ 2” (3.7m)
• Balanced for zero cribbing
• Dust suppression with manifold

Power and Controls

• CAT C9.3 300hp/224kw Tier 4 Final
• 170gal (643L) fuel tank
• 115gal (435L) oil reservoir
• One 12GPM and one 20GPM hydraulic circuits for magnet, side delivery, or auxiliary
• Radio remote/tether control system
• OPS 7 with push button or touchscreen
• Crusher CSS adjusted safely at control panel
• Real time system monitoring display
